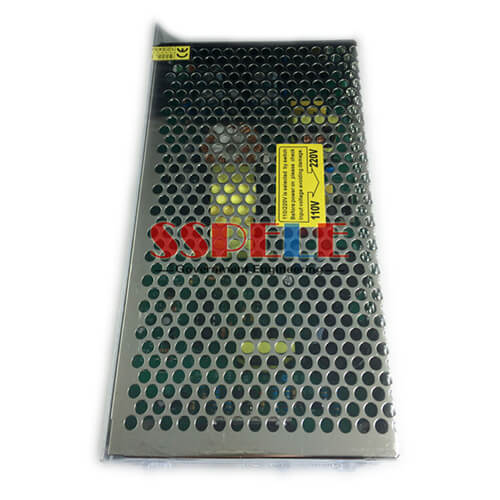

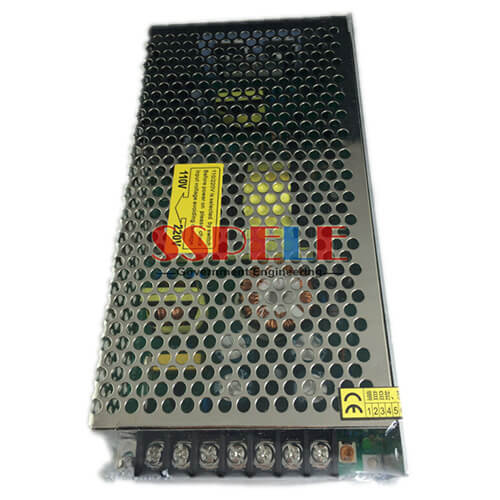

100W AC100-120V or 200-240V to DC110V 0.9A Switching Power Supply with CE

Output Power: 100W Output Voltage: 110VDC Output Current: 0.9A Input Voltage: AC100-120V / 200-240V
Output Power
100W
Output Voltage
110VDC
Output Current
0.9A
Input Voltage
AC100-120V / 200-240V
Brand
SSPELE
Application
Hospital,Engineering Project,Electric Lab,LED Lighting
Quality
ISO9001,CE,UL
Features:
High efficiency, high reliability
For AC power supply input global
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
PFC correction, built-in distance open/shutdown and voltage compensation signal interface
Size: 199*98*38mm(L*W*H)
110V Transformer,110V Converter


Model SS-100
-90
SS-100
-100
SS-100
-110
SS-100
-50
SS-100
-60
SS-100
-80
Output DC output voltage 90V 100V 110V 50V 60V 80V
Output voltage tolerance ±1% ±1% ±1% ±1% ±1% ±1%
Rated output current 1.1A 1A 0.9A 2A 1.6A 1.25A
Output current range 0-1.1A 0-1A 0-0.9A 0-2A 0-1.6A 0-1.25A
Output power 100W 100W 100W 100W 100W 100W
Ripple and the noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
DC voltage adjustable scope -10%,+10% -10%,+10% -10%,+10% -10%,+10% -10%,+10% -10%,+10%
Start, rise, keep time 1.5s,50ms,20ms Loaded with
Input Input voltage range 100-120VAC or 200-240VAC
Power factor PF>0.95/230VAC PF>0.95/115VAC Loaded with
Exchange input current 2.4A/115 V 1.2A/ 230 V
Efficiency 81% 82% 83% 85% 86% 87%
Impulse current 18A/115V 36A/230V
Leakage current <3.5mA/240VAC
Protection characteristics Overload protection 105%~135%
Protection way: current limiting, automatic recovery
Overvoltage protection 115%~135%
Protection way: voltage limitation, automatic recovery
Environment Working temperature, humidity -10℃~+60℃;20%~90 %RH
Keep temperature, humidity -20℃~+85℃;10%~95 %RH
Vibrate resistance 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis
Security Compression sex 1.5KVAC between input and output and input and output KVAC: 1.5 to:
0.5KVAC
Insulation resistance Between the input and output, the input and output, and ground:
100M Ohms/500VDC
Standards Insulation resistance Accord with
UL1012
EMC standard Accord with
EN55022 Class A
Other Weight 0.6Kg
Packaging 30pcs/19kg/0.034CBM
Note All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value.
Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
Specific output current see output drop forehead curve.
