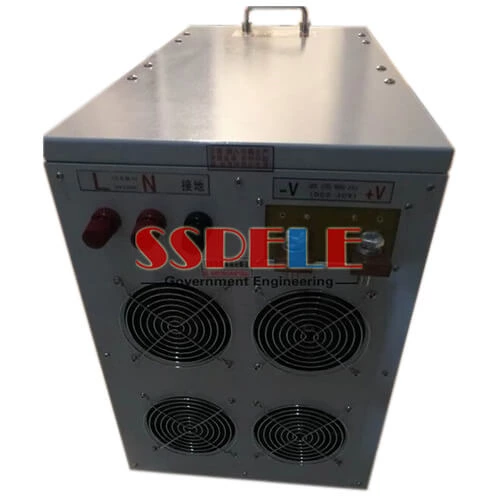

NEW 12000W 0-30VDC 400A Output Adjustable Switching Power Supply with Display
- Output Power
- 12000W
- Output Voltage
- 30VDC
- Output Current
- 400A
- Input Voltage
- AC200-240V
- Brand
- SSPELE
- Application
- Lab,Electric Station,Industry,Charging
- Quality
- Government Engineering
- Payment
- T/T,L/C,Paypal,Western Union
- Material
- Metal,PCB
- Place of Origin
- China
Features:
- High efficiency, high reliability
- For AC power supply input global
- 100% full load and machine test
- Protection characteristics: short circuit/overload/pressure
- Built-in dc electric fan forced air cooling
- Built-in fan switch control
- PFC correction, built-in distance open/shutdown and voltage compensation signal interface
- Size: 610*480*320mm(L*W*H)
- Output Voltage Customized: 0-30/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300/400/500/600/700/800V DC Adjustable
| model | SHA-12000 -500 |
SHA-12000 -30 |
SHA-12000 -150 |
SHA-12000 -100 |
SHA-12000 -80 |
SHA-12000 -48 |
SHA-12000 -60 |
SHA-12000 -250 |
SHA-12000 -120 |
SHA-12000 -300 |
|
| output | Dc output voltage | 0-500V | 0-30V | 0-150V | 0-100V | 0-80V | 0-48V | 0-60V | 0-250V | 0-120V | 0-300V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 24A | 400A | 80A | 120A | 150A | 250A | 200A | 48A | 100A | 40A | |
| Output current range | 0-24A | 0-400A | 0-80A | 0-120A | 0-150A | 0-250A | 0-200A | 0-48A | 0-100A | 0-40A | |
| Output power | 12000W | 12000W | 12000W | 12000W | 12000W | 12000W | 12000W | 12000W | 12000W | 12000W | |
| Ripple and the noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Dc voltage adjustable scope | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | |
| Start, rise, keep time | 200ms,50ms,30ms full Loaded with 230VAC | ||||||||||
| input | Input voltage range | 200-240VAC | |||||||||
| Frequency | 47-63Hz | ||||||||||
| Exchange input current | None | ||||||||||
| efficiency | 86% | 82% | 83% | 85% | 86% | 86% | 86% | 86% | 86% | 86% | |
| Impulse current | 20A/115V 40A/230V | ||||||||||
| Leakage current | <3.5mA/240VAC | ||||||||||
| Protection characteristics | Overload protection | 115%~135% | |||||||||
| Protection way: cut off the output,reset, automatic recovery | |||||||||||
| Overvoltage protection | 120%~140% | ||||||||||
| Protection way: hiccups, auto recovery mode | |||||||||||
| environment | Working temperature, humidity | -10℃~+60℃;20%~90 %RH | |||||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | ||||||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | ||||||||||
| security | Compression sex |
L/P-O/P: 1.5KVAC , L/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC (one minute) |
|||||||||
| Insulation resistance |
L/P-O/P, L/P-FG,O/P-FG : 500VDC / 100M ohms |
||||||||||
| standards | Insulation resistance | Accord with GB4943,UL60950,EN60950 |
|||||||||
| EMC standard | Accord with EN55022, GB9254 |
||||||||||
| other | weight | 70Kg | |||||||||
| packaging | 1pcs/70kg | ||||||||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
||||||||||
