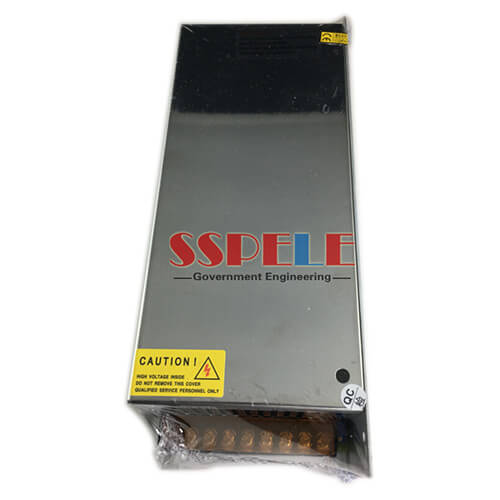

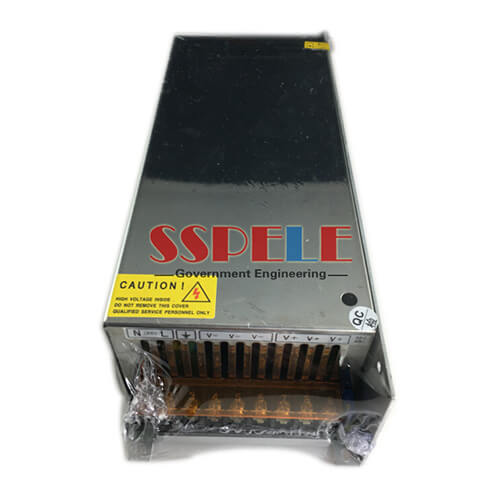

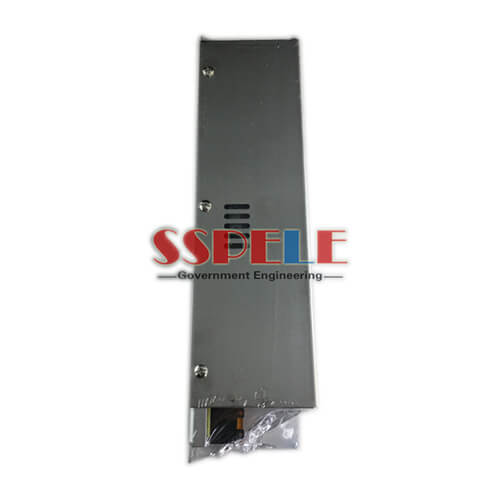

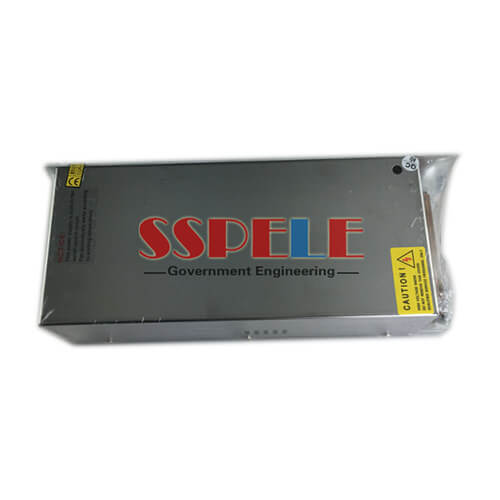

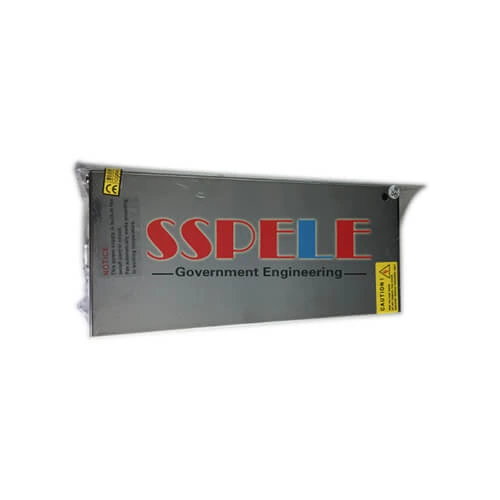

500W 110VDC 4.5A Output Regulated Switching Power Supply with CE
Features:
High efficiency, high reliability
For AC power supply input global
100% full load and machine test
- Output Power
- 500W
- Output Voltage
- 110VDC
- Output Current
- 4.5A
- Input Voltage
- AC100-120V or 200-240V (Optional)
- Brand
- SSPELE
- Application
- LED Lighting,Stepper Motor
|
|||||||||
| model | SS-500 -110 |
SS-500 -24 |
SS-500 -36 |
SS-500 -48 |
SS-500 -60 |
SS-500 -80 |
|||
| output | Dc output voltage | 110V | 24V | 36V | 48V | 60V | 80V | ||
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||
| Rated output current | 4.5A | 20A | 13.8A | 10A | 8.5A | 6.25A | |||
| Output current range | 0-4.5A | 0-20A | 0-13.8A | 0-10A | 0-8.5A | 0-6.25A | |||
| Output power | 500W | 500W | 500W | 500W | 500W | 500W | |||
| Ripple and the noise | 300mVp-p | 280mVp-p | 260mVp-p | 240mVp-p | 200mVp-p | 180mVp-p | |||
| Dc voltage adjustable scope | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | -10%,+10% | |||
| Start, rise, keep time | 1.5s,50ms,20ms Loaded with | ||||||||
| input | Input voltage range | 100-120VAC or 200-240VAC | |||||||
| Power factor | PF>0.95/230VAC PF>0.95/115VAC Loaded with | ||||||||
| Exchange input current | 7A/115 V 3.5A/ 230 V | ||||||||
| efficiency | 81% | 82% | 83% | 85% | 86% | 87% | |||
| Impulse current | 18A/115V 36A/230V | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Protection characteristics | Overload protection | 105%~135% | |||||||
| Protection way: current limiting, automatic recovery | |||||||||
| Overvoltage protection | 115%~135% | ||||||||
| Protection way: hiccups, auto recovery mode | |||||||||
| environment | Working temperature, humidity | -10℃~+50℃;20%~90 %RH | |||||||
| Keep temperature, humidity | -20℃~+85℃;10%~95 %RH | ||||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | ||||||||
| security | Compression sex | 3: KVAC between input and output and input and output KVAC: 1.5 to: 0.5KVAC |
|||||||
| Insulation resistance | Between the input and output, the input and output, and ground: 100M Ohms/500VDC |
||||||||
| standards | Insulation resistance | Accord with UL1950,TUV EN60950 |
|||||||
| EMC standard | Accord with EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204 |
||||||||
| other | weight | 1.5Kg | |||||||
| packaging | 15pcs/22.5kg/1.22CUFT | ||||||||
| note | All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
||||||||
