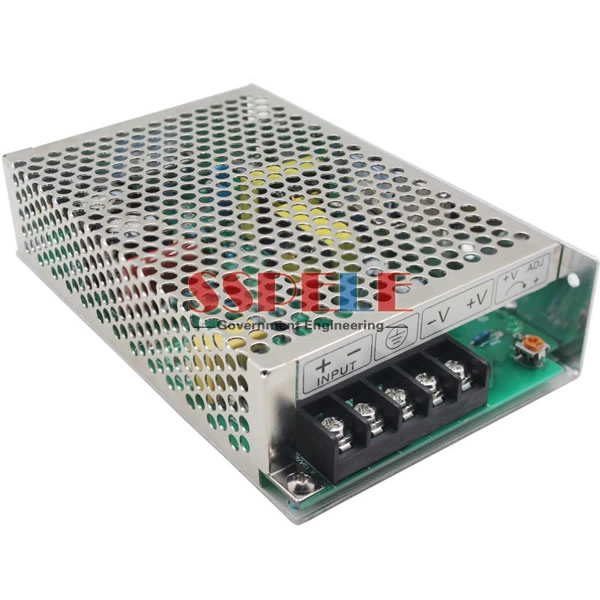

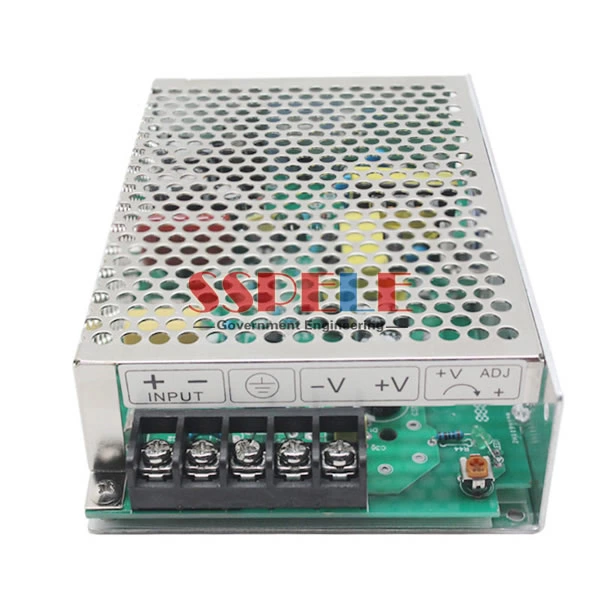

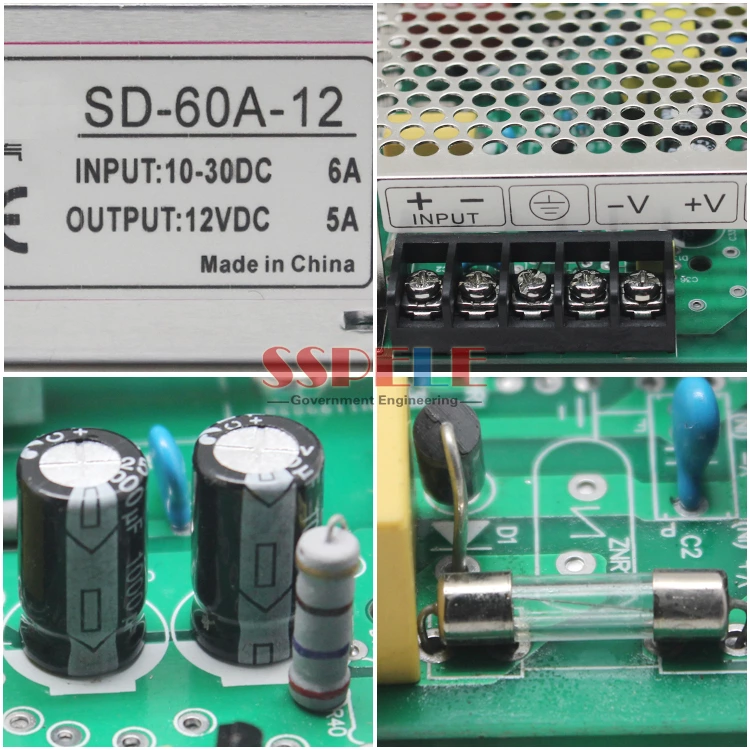

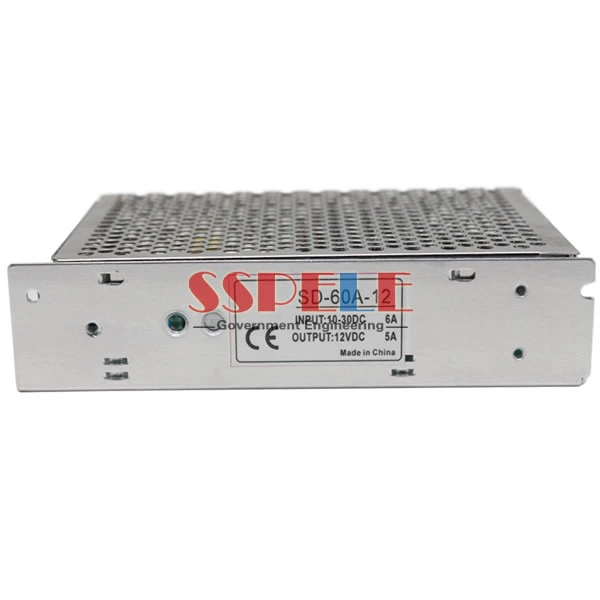

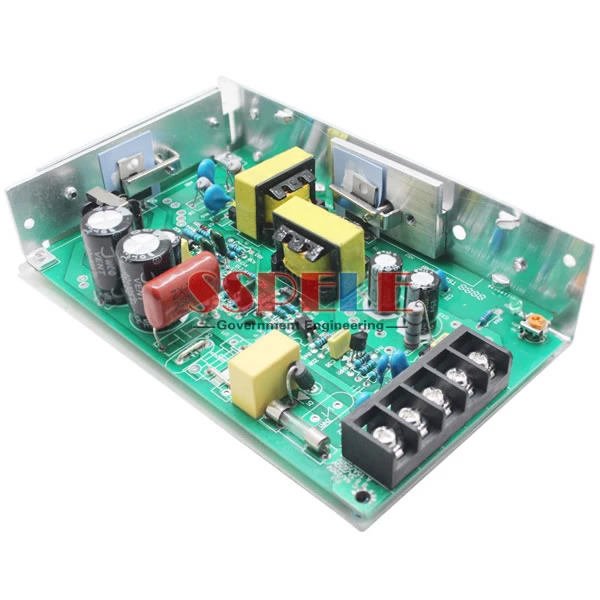

SD-60
60WSingle Output DC-DCConverter SD-60 series
Features:
2:1 wide input range
Protections: Short circuit / Overload /
60WSingle Output DC-DCConverter SD-60 series
Features:
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Fixed switching frequency at 83 KHz
- Low cost
- High reliability
- 2 years warranty
| SPECIFICATION | |||||||||||||||||
| OUTPUT | |||||||||||||||||
| Model | SD-60A-5 | SD-60B-5 | SD-60C-5 | SD-60D-12 | SD-60A-12 | SD-60B-12 | SD-60C-12 | SD-60D-12 | SD-60A-24 | SD-60B-24 | SD-60C-24 | SD-60D-24 | |||||
| DC Voltage | 5V | 12V | 24V | ||||||||||||||
| Rated Current | 12A | 5A | 2.5A | ||||||||||||||
| Current Range | 0~12A | 0~5A | 0~2.5A | ||||||||||||||
| Rated Power | 60W | 60W | 60W | ||||||||||||||
| Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | ||||||||||||||
| Voltage Adj. Range | 4.5~5.5VDC | 11~16VDC | 23~30VDC | ||||||||||||||
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ||||||||||||||
| Line Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||||||||||
| Load Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||||||||||
| Setup, Rise, Hold Up Time | 2.5s,50ms,------at full load | ||||||||||||||||
| INPUT | |||||||||||||||||
| Voltage Range | A:9.2~18VDCB:19~36VDC C:36~72VDCD:73~144VDC | ||||||||||||||||
| Efficiency | 70% | 73% | 76% | 72% | 75% | 78% | 74% | 80% | 83% | ||||||||
| DC Current | 7A/12V | 3A/24V | 1.5A/48V | ||||||||||||||
| PROTECTION | |||||||||||||||||
| Over Load | 105~150% rated output power | ||||||||||||||||
| Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||||||||||
| Over Voltage | 5.75~6.75V/10%load | 16.8~20V/10%load | 31.5~37.5V/10%load | ||||||||||||||
| Protection type:Hiccup mode,recovers automatically after fault condition is removed | |||||||||||||||||
| ENVIRONMENT | |||||||||||||||||
| Working Temp. | -10~+60℃ (Refer to "Derating Curve") | ||||||||||||||||
| Working Humidity | 20~90% RH non-condensing | ||||||||||||||||
| Storagetemp.,Humidity | -20~+85℃ ,10~95%RH | ||||||||||||||||
| Temp.Coefficient | ±0.03%/℃ (0~50℃) | ||||||||||||||||
| Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes | ||||||||||||||||
| SAFETY &EMC | |||||||||||||||||
| Safety Standards | Design refer to LVD | ||||||||||||||||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||||||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC /25℃ /70%RH | ||||||||||||||||
| EMC Emission | Compliance to EN55022(CISPR22)Class B | ||||||||||||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,6,8, EN55024, heavy industry level, criteria A | ||||||||||||||||
| OTHERS | |||||||||||||||||

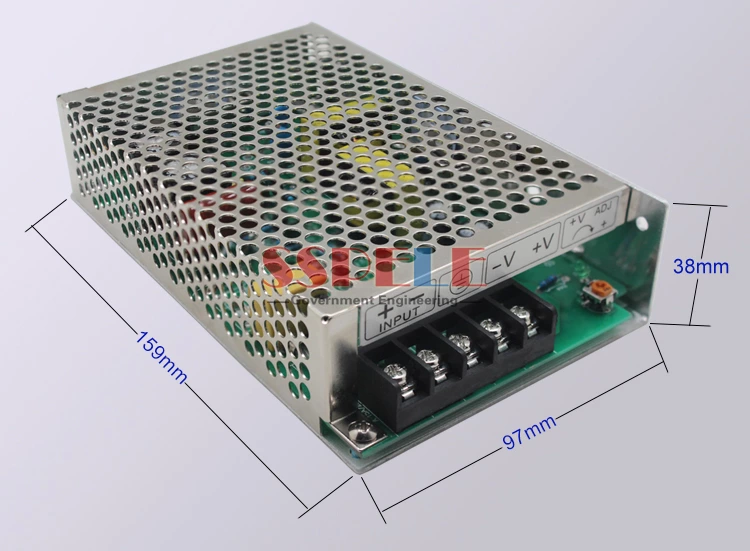

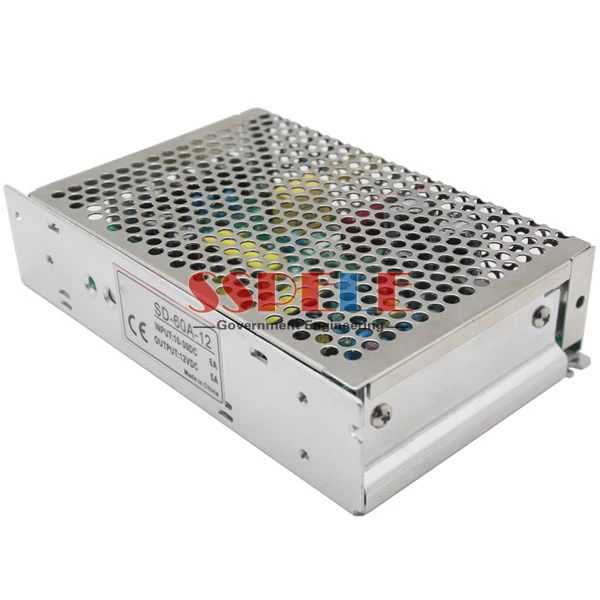

| Dimension | 159*97*38mm(L*W*H) | ||||||||||||||||
| Weight | 0.48Kg | ||||||||||||||||
| Packing | 24pcs/12.7Kg/0.75CUFT | ||||||||||||||||
| NOTE | |||||||||||||||||
| 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. | |||||||||||||||||
