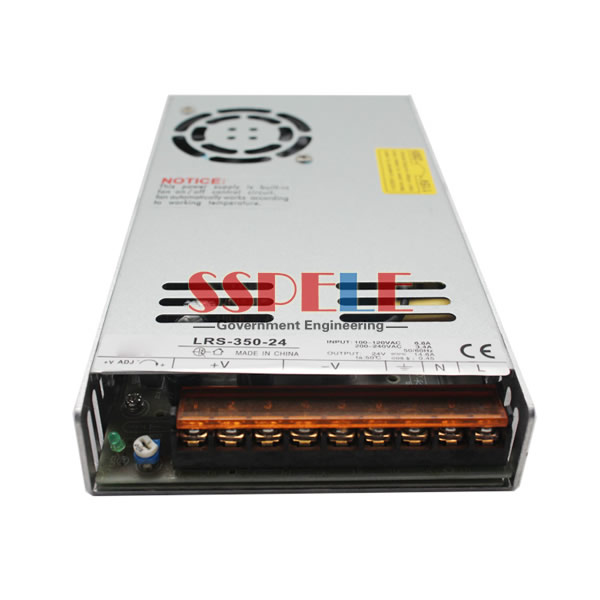

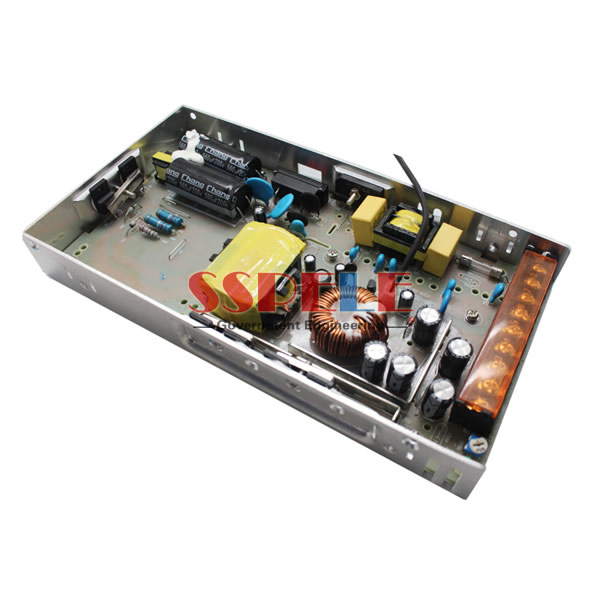

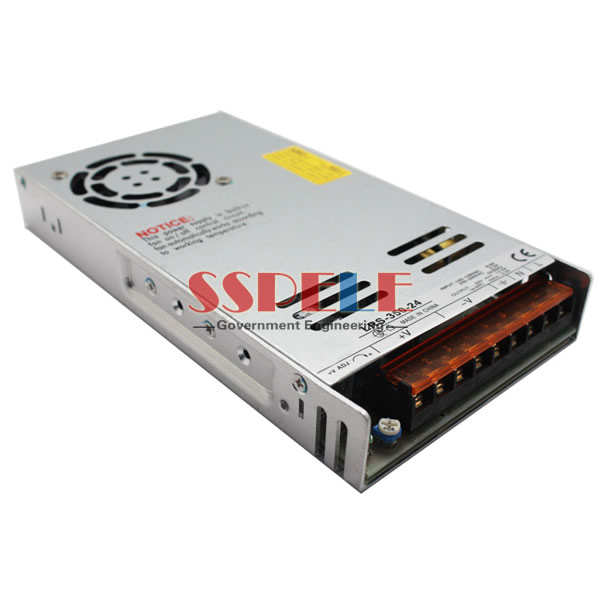

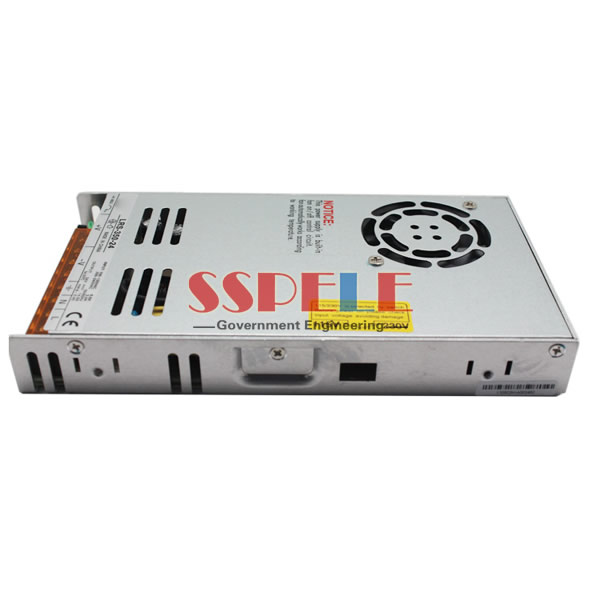

350W Single Output Switching Power Supply LRS-350 series
Features:

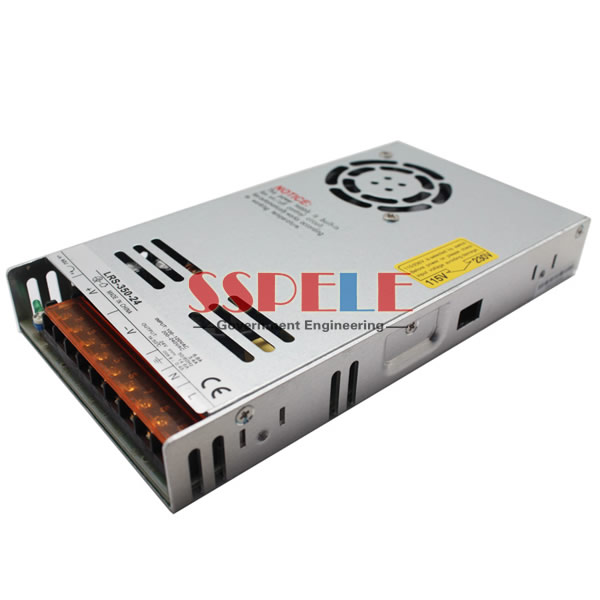

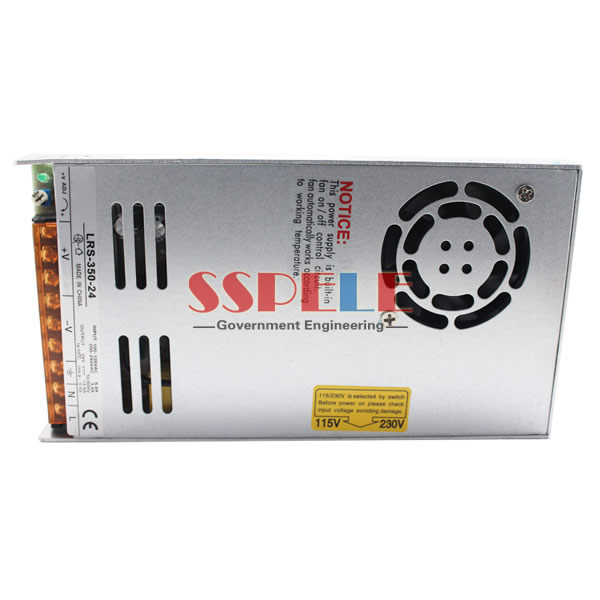

- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Forced air cooling by bulit-in DC fan
- Built-in cooling Fan ON-OFF control
- LED indicator for power on
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 2 years warranty
|
SPECIFICATION
|
|
||||||||||
|
OUTPUT
|
|
||||||||||
|
Model
|
LRS-350-3.3
|
LRS-350-5
|
LRS-350-12
|
LRS-350-15
|
LRS-350-24
|
||||||
|
DC Voltage
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
||||||
|
Rated Current
|
60A
|
60A
|
29A
|
23.2A
|
14.6A
|
||||||
|
Current Range
|
0~60A
|
0~60A
|
0~29A
|
0~23.2A
|
0~14.6A
|
||||||
|
Rated Power
|
198W
|
300W
|
348W
|
348W
|
350.4W
|
||||||
|
Ripple&Noise
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
||||||
|
VoltageAdj. Range
|
2.97~3.6V
|
4.5 ~ 5.5V
|
10~ 13.8V
|
13.5~18V
|
21.6~28.8V
|
||||||
|
Voltage Tolerance
|
±4.0%
|
±3.0%
|
±1.5%
|
±1.0%
|
±1.0%
|
||||||
|
Line Regulation
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
||||||
|
Load Regulation
|
±2.5%
|
±2.0%
|
±1.0%
|
±0.5%
|
±0.5%
|
||||||
|
Setup,Rise Time
|
1300ms, 50ms/230VAC 1300ms, 50ms/115VAC at full load
|
||||||||||
|
Hold Up Time
|
16ms/230VAC 12ms/115VAC at full load
|
||||||||||
|
|
|
||||||||||
|
INPUT
|
|
||||||||||
|
Voltage Range
|
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC (switch on 230VAC)
|
||||||||||
|
Frequency Range
|
47 ~ 63Hz
|
||||||||||
|
Efficiency
|
79.5%
|
83.5%
|
85%
|
86%
|
88%
|
88.5%
|
|||||
|
AC Current
|
6.8A/115VAC 3.4A/230VAC
|
||||||||||
|
Inrush Current
|
60A/115VAC 60A/230VAC
|
||||||||||
|
Leakage Current
|
<2mA / 240VAC
|
||||||||||
|
|
|
||||||||||
|
PROTECTION
|
|
||||||||||
|
Over Load
|
110 ~ 140% rated output power
|
||||||||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|||||||||||
|
Over Voltage
|
3.8~4.45V
|
5.75~6.75V
|
13.8~16.2V
|
18~21V
|
28.8~33.6V
|
41.4~46.8V
|
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|||||||||||
|
Over temperature
|
Hiccup mode, recovers automatically after fault condition is removed
|
||||||||||
|
|
|
||||||||||
|
ENVIRONMENT
|
|
||||||||||
|
Working Temp.
|
-20 ~ +70℃ (Refer to “derating curve”)
|
||||||||||
|
Working Humidity
|
20 ~ 90% RH non-condensing
|
||||||||||
|
StorageTemp., Humidity
|
-40 ~ +85℃, 10 ~ 95% RH
|
||||||||||
|
Temp. Coefficient
|
±0.03%/℃ (0 ~ 50℃)
|
||||||||||
|
Vibration
|
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
|
||||||||||
|
|
|
||||||||||
|
SAFETY
|
|
||||||||||
|
Safety Standards
|
UL60950-1 approved
|
||||||||||
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
||||||||||
|
Isolation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
|
||||||||||
|
|
|
||||||||||
|
OTHERS
|
|
||||||||||
|
Dimension
|

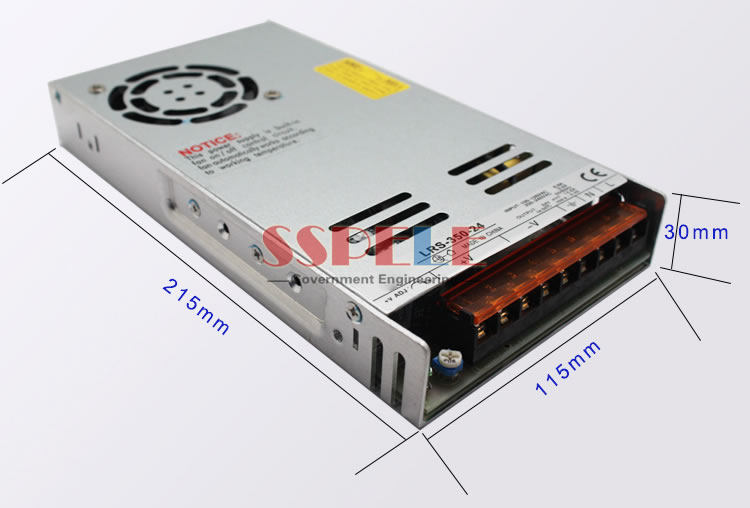

215*115*30mm (L*W*H)
|
||||||||||
|
Weight
|
0.76Kg
|
||||||||||
|
Packing
|
15pcs/carton/12.4kg/0.78CUFT
|
||||||||||
|
|
|
||||||||||
|
NOTE
|
|
||||||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
|
|||||||||||
