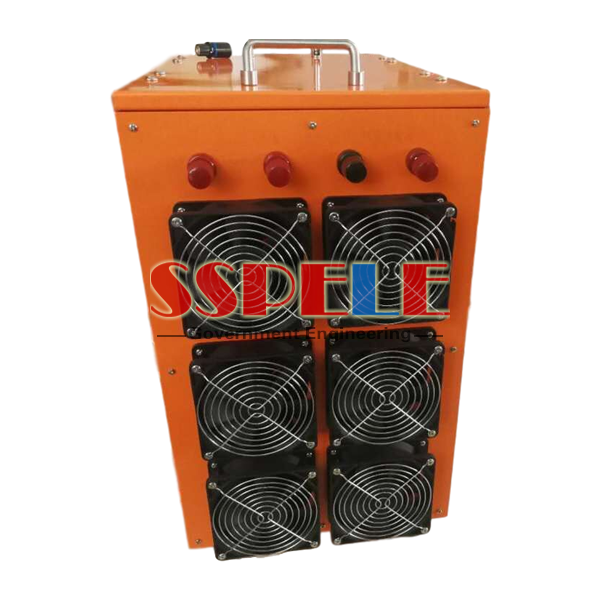

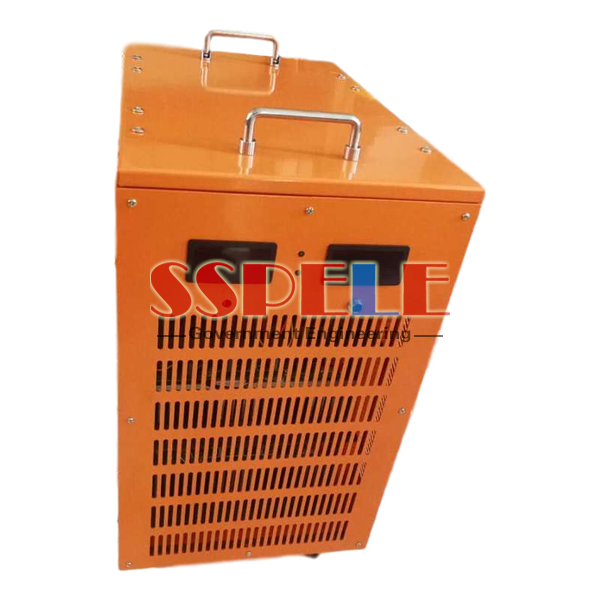

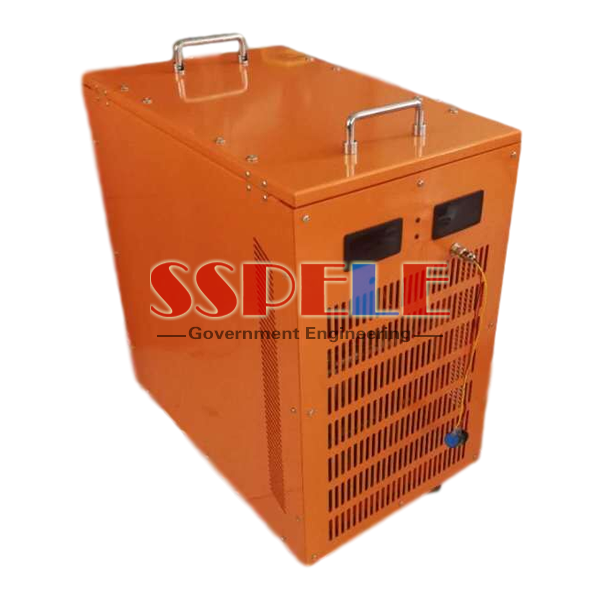

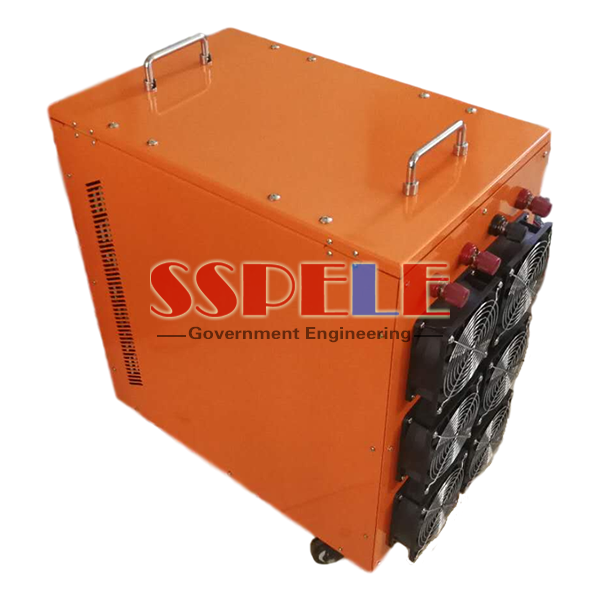

18000W Output Adjustable Switch Mode Power Supply
Output Power: 18000W
Input Voltage: AC200-240V
Output Voltage: 0-60V DC Adjustable
Output Current: 300A
Dimension:
- Output Power
- 18000W
- Output Voltage
- 0-24/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300V DC Adjustable
- Output Current
- 0-600A
- Input Voltage
- AC200-240V
- Brand
- SSPELE
- Application
- Power DC screen system,industrial control automation, communications, military research, battery charging and aging test equipment.
- Quality
- Government Engineering,ISO9001,CE&Rohs,UL
- Payment
- T/T, L/C, Western Union,Paypal,MoneyGram
- Quantity
- 5000 Sets Per Month
- Packing
- Suitable Packing For Sea / Air Transport
- Material
- Aluminum,PCB
- Place of Origin
- Zhejiang,China
- Ripple&Noise
- 500mVp-p
Features:
- High efficiency, high reliability
- For AC power supply input global
- 100% full load and machine test
- Protection characteristics: short circuit/overload/pressure
- Built-in dc electric fan forced air cooling
- Built-in fan switch control
- PFC correction, built-in distance open/shutdown and voltage compensation signal interface
- Size: 550*500*320mm(L*W*H)
- Output Voltage Customized: 0-24/36/40/48/60/70/80/90/100/110/120/150/180/200/220/250/300V DC Adjustable
| model | SHA-18000 -300 |
SHA-18000 -200 |
SHA-18000 -150 |
SHA-18000 -100 |
SHA-18000 -80 |
SHA-18000 -48 |
SHA-18000 -60 |
|
| output | Dc output voltage | 0-300V | 0-200V | 0-150V | 0-100V | 0-80V | 0-48V | 0-60V |
| Output voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 60A | 90A | 120A | 180A | 225A | 375A | 300A | |
| Output current range | 0-60A | 0-90A | 0-120A | 0-180A | 0-225A | 0-375A | 0-300A | |
| Output power | 18000W | 18000W | 18000W | 18000W | 18000W | 18000W | 18000W | |
| Ripple and the noise | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | 500mVp-p | |
| Dc voltage adjustable scope | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | ±0-100% | |
| Start, rise, keep time | 200ms,50ms,30ms full Loaded with 230VAC | |||||||
| input | Input voltage range | 200-240VAC | ||||||
| Frequency | 50-60Hz | |||||||
| Exchange input current | None | |||||||
| efficiency | 86% | 82% | 83% | 85% | 86% | 86% | 86% | |
| Impulse current | None | |||||||
| Leakage current | <3.5mA/240VAC | |||||||
| Protection characteristics | Overload protection | 105%~135% | ||||||
| Protection way: cut off the output,reset, automatic recovery | ||||||||
| Overvoltage protection | 120%~140% | |||||||
| Protection way: Folded current limit ,auto recovery mode | ||||||||
| environment | Working temperature, humidity | -10℃~+50℃;90 %RH | ||||||
| Keep temperature, humidity | -20℃~+70℃;90％(40±2℃) | |||||||
| Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | |||||||
| security | Compression sex |
L/P-O/P: 1.5KVAC , L/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC (one minute) |
||||||
| Insulation resistance |
L/P-O/P, L/P-FG,O/P-FG : 500VDC / 100M ohms |
|||||||
| standards | Insulation resistance | Accord with GB4943,UL60950,EN60950 |
||||||
| EMC standard | Accord with EN55022, Class A |
|||||||
| other | weight | 70Kg | ||||||
| packaging | 1set/70kg | |||||||
| note | All the parameters in has not specified, all is in 220 VAC voltage input, rated load and 25 ℃conditions measuring income value. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index. Specific output current see output drop forehead curve. |
|||||||
