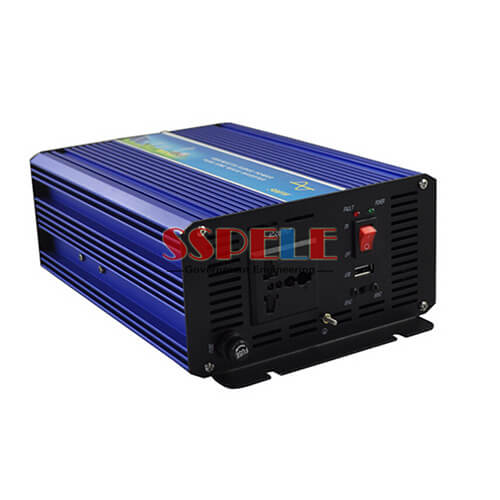

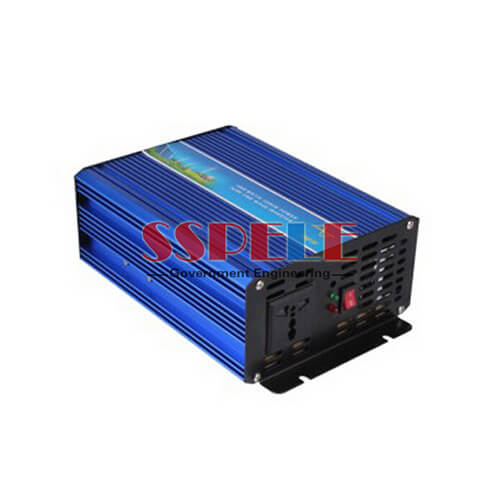

500W Pure Sine Wave Inverter

Model PIS-500W Input DC voltage 12V 24V 48V 110V Voltage range 10-16VDC 20-33VDC 40-63VDC 90-
Output Power
500W
Output Voltage
100/110/120VAC or 220/230/240VAC
Output Current
According to output voltage
Input Voltage
12/24/48/96/100/110/120/150/200/220VDC
Brand
SSPELE
Application
Solar,household,Electric Engineering,etc.
Quality
Government Engineering,ISO9001,CE&Rohs,UL
Payment
T/T, L/C, Western Union,Paypal,MoneyGram
Quantity
100000 PCS Per Month
Packing
Suitable Packing For Sea / Air Transport
Material
Aluminum,PCB
Place of Origin
Zhejiang,China
Ripple&Noise
100mVp-p

 Adopt advanced CPU intelligent control

 Complete protection

 USB interface with 5V2A

 Customizable frequency switch

■ Customizable DC voltage range not commonly used

Model PIS-500W
Input DC voltage 12V 24V 48V 96V 110V
Voltage range 10-16VDC 20-33VDC 40-63VDC 80-120VDC 90-135VDC
No load current draw 0.7A 0.4A 0.2A 0.1A 0.1A
Efficiency > 90%
DC connection Cables With Clips or Car Adaptor
Output AC voltage 100/110/120VAC or 220/230/240 VAC
Continuous power 500W
Surge power 1000W
Waveform Pure sine wave
Frequency 50Hz or 60Hz
AC regulation 3%
Protection Low voltage alarm 10.5DC±0.5V 21DC±1V 42VDC±1V 84DC±2V 96VDC±3V
Low voltage shut down 10DC±0.5V 20DC±1V 40VDC±1V 80DC±2V 90VDC±3V
Short circuit Shut off output automatically
Over load Shut off output
Over voltage shut down 16±0.5V  33±1V  63±1V 120±2V 135±3V
Over thermal hut off output automatically
Environment Working temperature  -10℃ and +50℃
Working humidity 20%~90%RH
Storage temperature   -30℃ ~ +70℃
Package Machine size(L*W*H)mm 255*165*85
Net weight KG 2
Gross weight KG 2.4
Packing size mm 355*230*148
