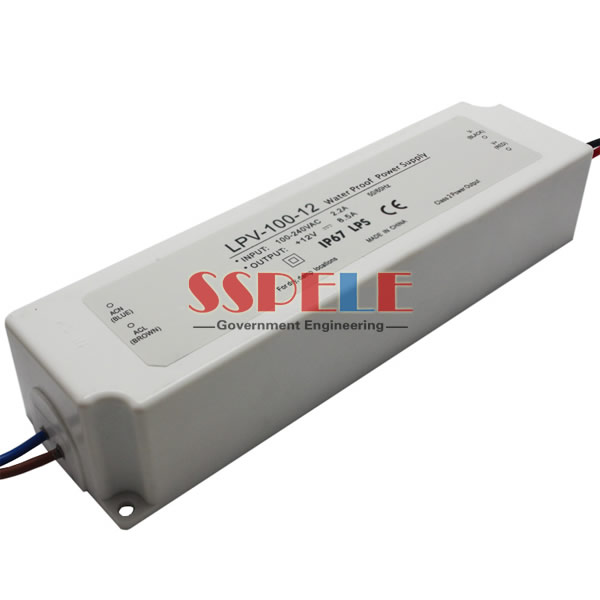

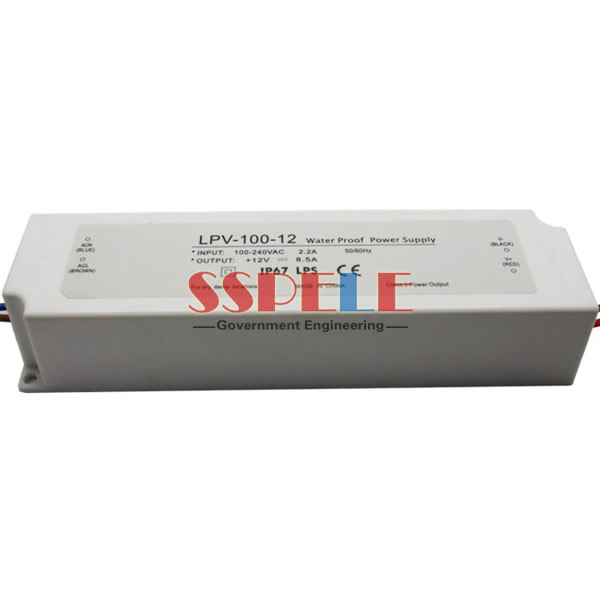

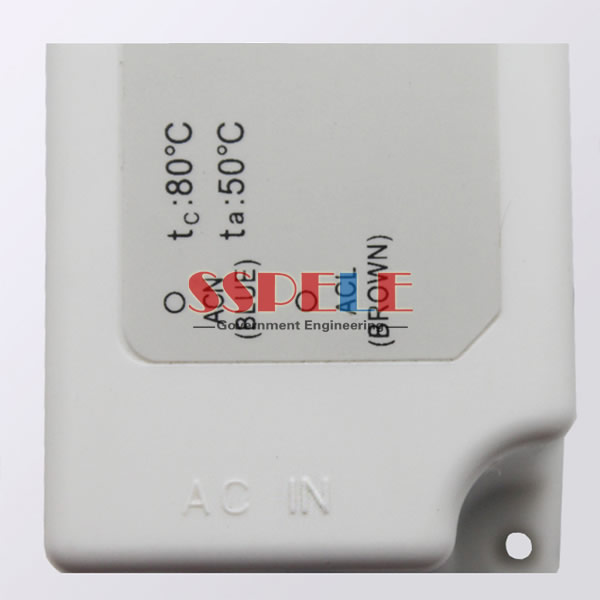

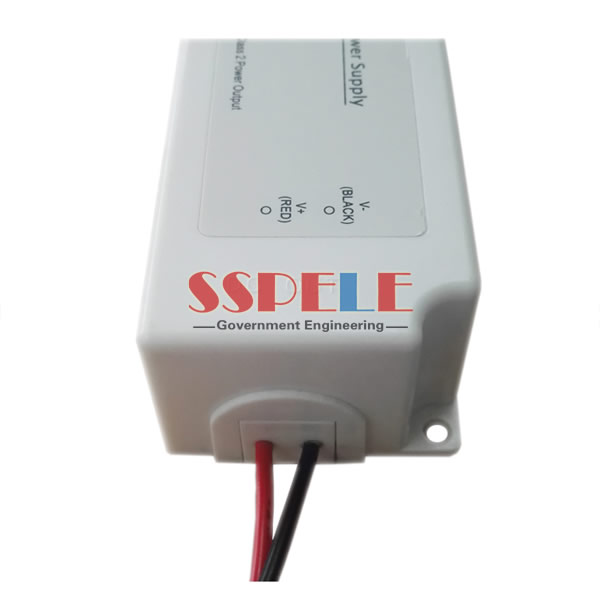

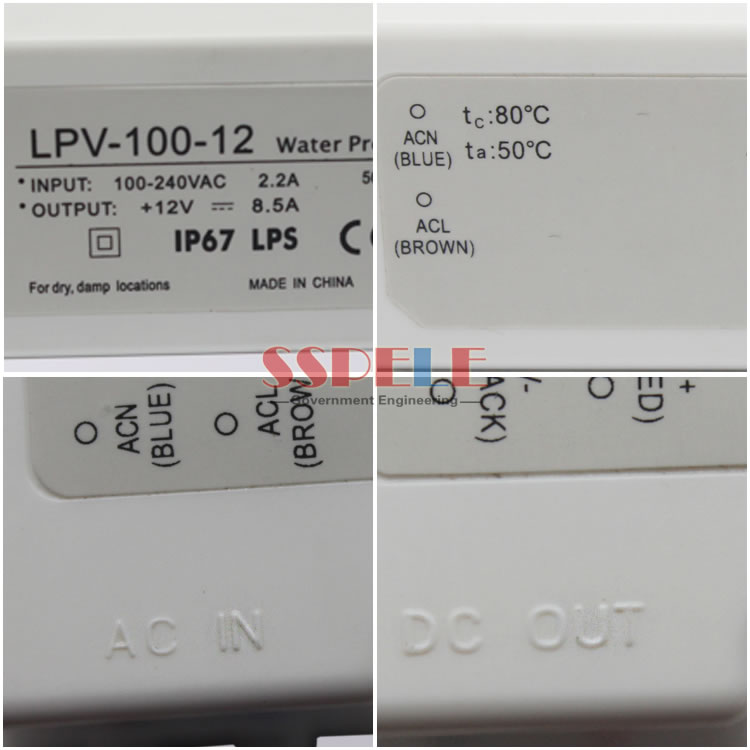

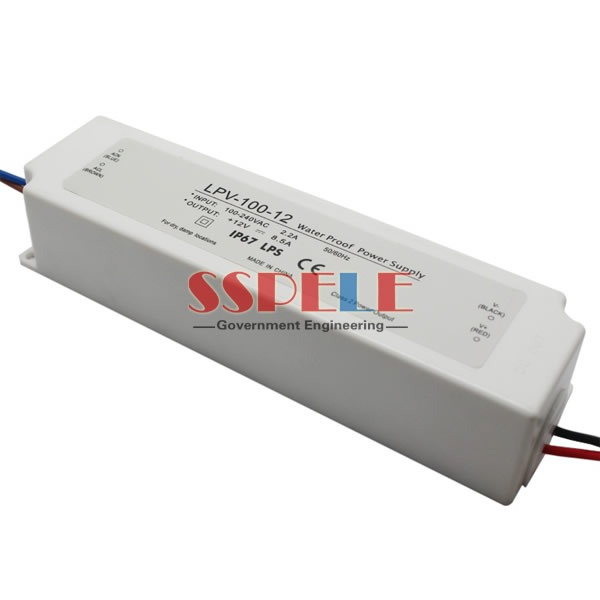

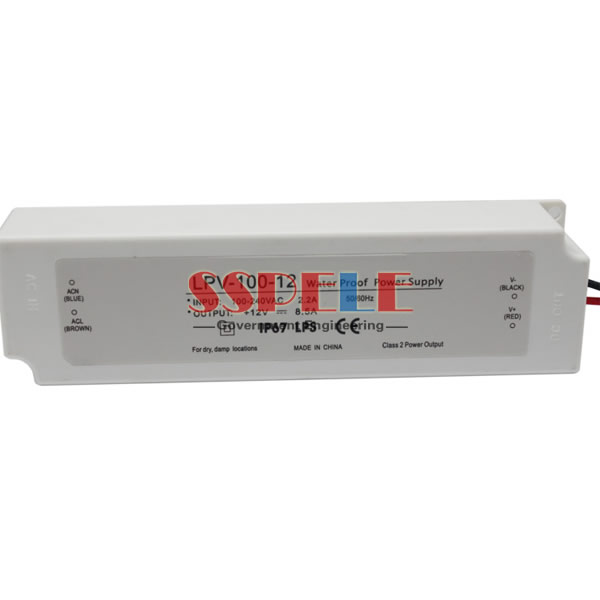

100W Waterproof Single Output Switching Power Supply LPV-100 series
Features:
- Constant voltage design
- Universal AC input/Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: short circuit/ over load/ over voltage
- Cooling by free air convection
- Small and compact size
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 year warranty
|
SPECIFICATIONS
|
||||||||
|
OUTPUT
|
|
|||||||
|
Model
|
LPV-100-5
|
LPV-100-12
|
LPV-100-15
|
LPV-100-24
|
LPV-100-36
|
LPV-100-48
|
||
|
DC Voltage
|
5V
|
12V
|
15V
|
24V
|
36V
|
48V
|
||
|
Rated Current
|
12A
|
8.5A
|
6.7A
|
4.2A
|
2.8A
|
2.1A
|
||
|
Current Range
|
0-12A
|
0-8.5A
|
0-6.7A
|
0-4.2A
|
0-2.8A
|
0-2.1A
|
||
|
Rated Power
|
60W
|
102W
|
100.5W
|
100.8W
|
100.8W
|
100.8W
|
||
|
Ripple&Noise
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
||
|
Voltage Tolerance
|
±8%
|
±5%
|
||||||
|
Line Regulation
|
±1%
|
|||||||
|
Load Regulation
|
±6%
|
±2%
|
||||||
|
Setup,Rise Time
|
2000ms, 25ms/230VAC2000ms, 25ms/115VAC
|
|||||||
|
Hold Up Time
|
50ms/230VAC 14ms/115VAC at full load
|
|||||||
|
|
|
|||||||
|
INPUT
|
|
|||||||
|
Voltage Range
|
90~264VAC47-63Hz;127~370VDC
|
|||||||
|
AC Current
|
2.2A/115V1.2A/230V
|
|||||||
|
Efficiency
|
80%
|
85%
|
87%
|
88%
|
88%
|
89%
|
||
|
Inrush Current
|
Cold Start75A at 230VAC
|
|||||||
|
Leakage Current
|
0.25mA/240VAC
|
|||||||
|
|
|
|||||||
|
PROTECTION
|
|
|||||||
|
Over Load
|
110-150% rated output power
|
|||||||
|
Protectiontype: Hiccup mode, recovers automatically after fault condition is removed
|
||||||||
|
Over Voltage
|
5.75-6.75V
|
13.8-16.2V
|
17.25-20.25V
|
27.6-32.4V
|
41.4-48.6V
|
55.2-64.8V
|
||
|
Protection type: Shut down o/p voltage, re-power on to recover
|
||||||||
|
|
|
|||||||
|
ENVIRONMENT
|
|
|||||||
|
Working Temp.Humidity
|
-25 ~ +70℃ (Refer to “Derating Curve”) 20-90% RH non-condensing
|
|||||||
|
Storage Temp.Humidity
|
-40℃~+80℃; 10%~95%RH
|
|||||||
|
Temp.Coefficient
|
±0.03%/℃(0～50℃)
|
|||||||
|
Vibration
|
10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes
|
|||||||
|
|
|
|||||||
|
SAFETY
|
|
|||||||
|
Withstand Voltage
|
I/P-O/P:3KVAC
|
|||||||
|
Isolation Resistance
|
I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH
|
|||||||
|
|
|
|||||||
|
STANDARD
|
|
|||||||
|
Safety Standard
|
UL8750, CSA C22.2 No.250.13-12, UL879,CSA C22.2 No.207-M89, IP67 approved, design refer to EN60950-1
|
|||||||
|
EMCStandard
|
EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
|
|||||||
|
|
|
|||||||
|
OTHERS
|
|
|||||||
|

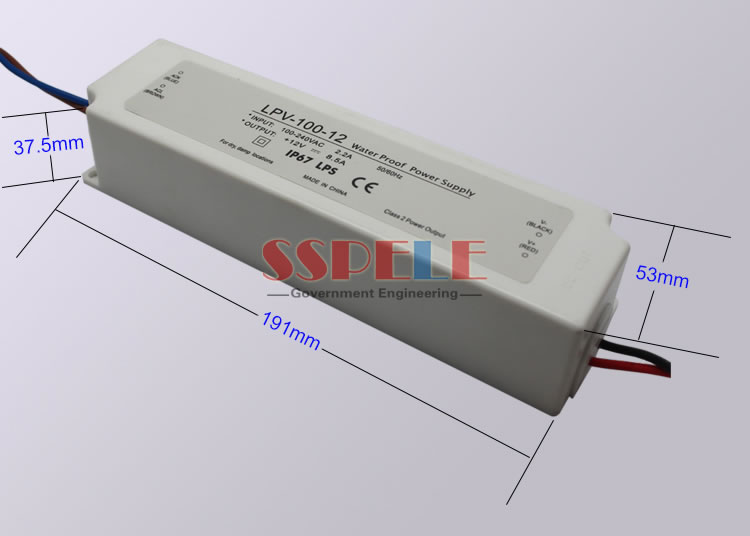

Dimension
|
190*52*37mm(L*W*H)
|
|||||||
|
Weight
|
0.63kg;20pcs/13.6kg/0.55CUFT
|
|||||||
|
|
|
|||||||
|
NOTE
|
|
|||||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may not be needed under low input voltage. Please check the static characteristics for more details.
|
||||||||
