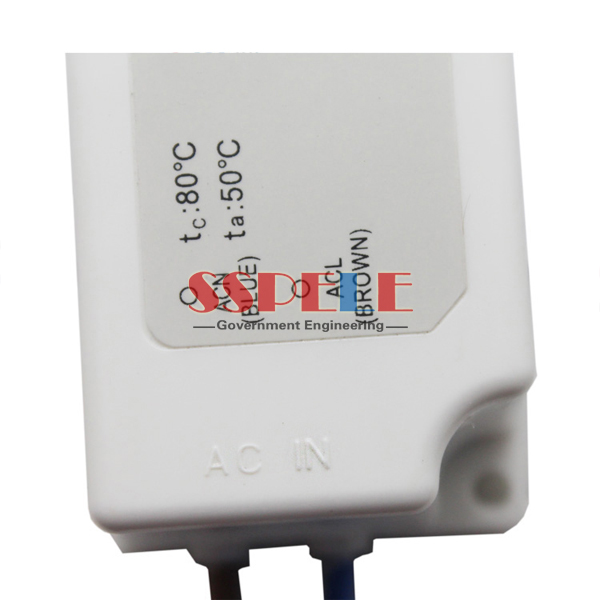

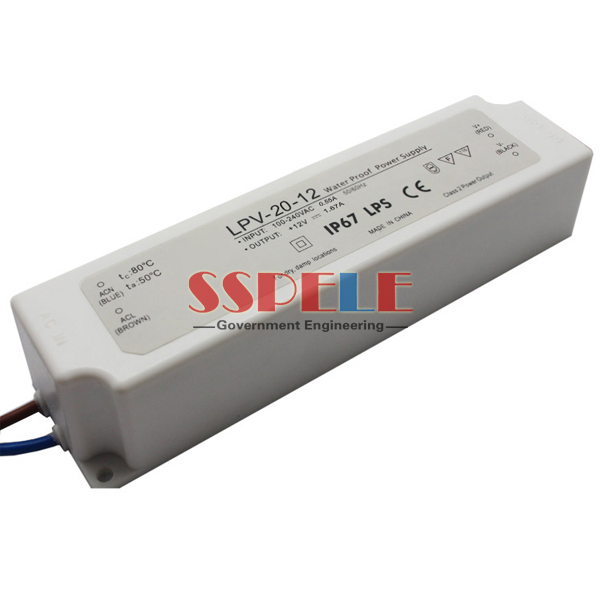

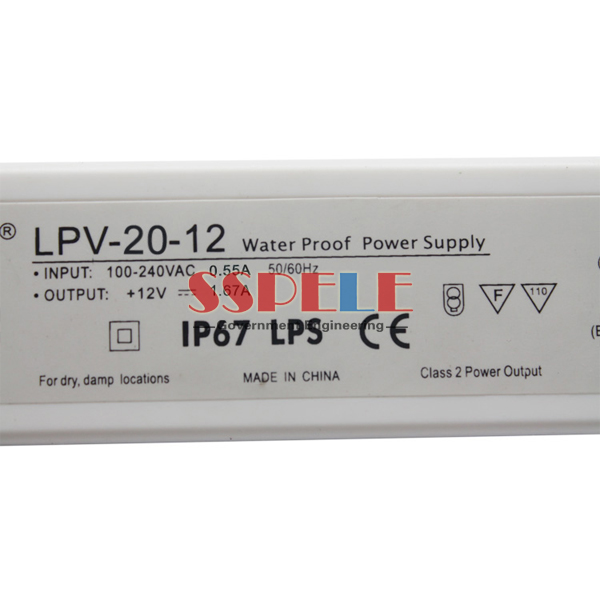

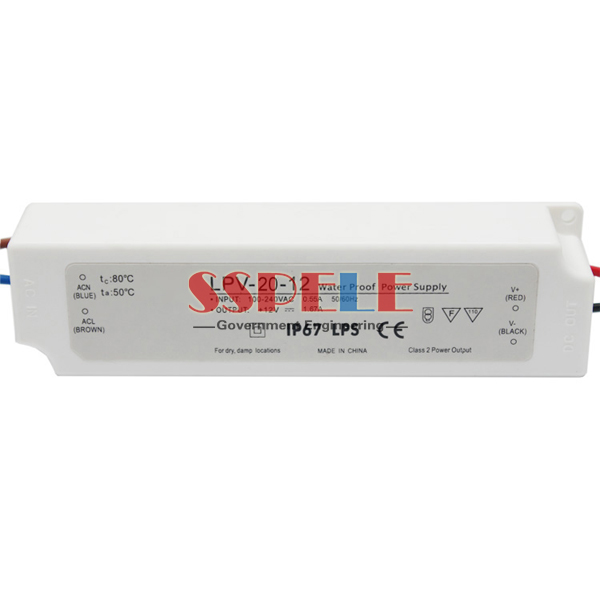

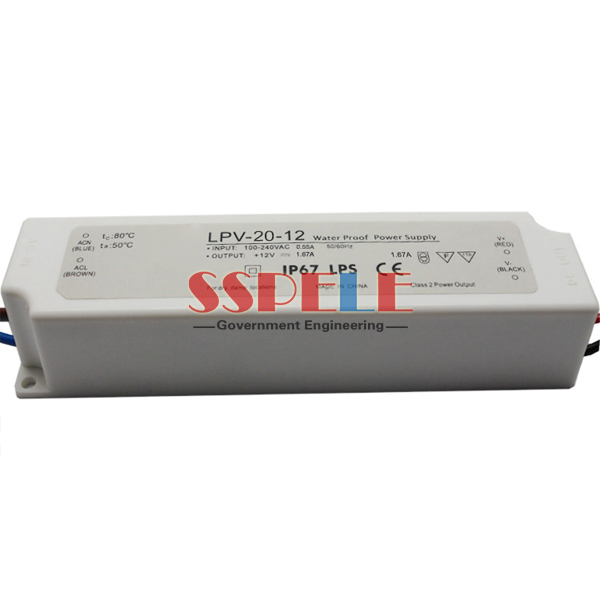

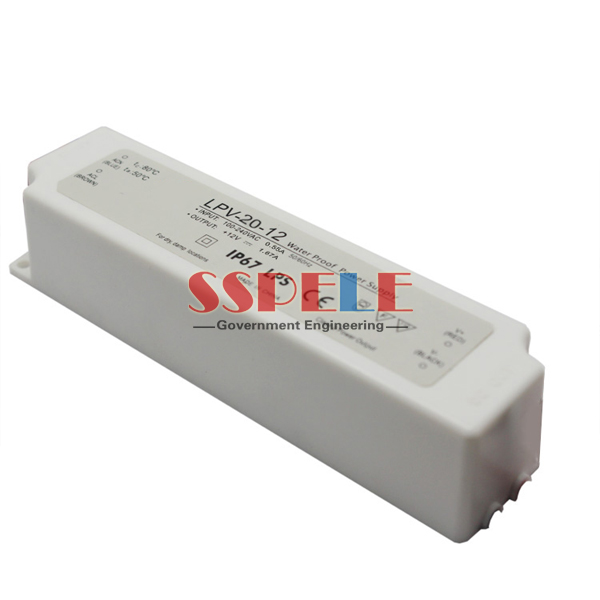

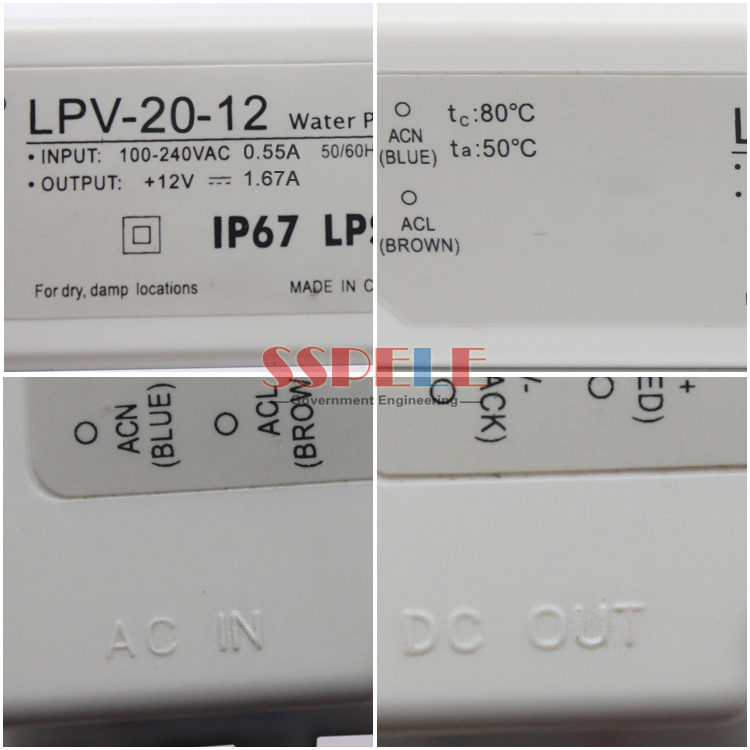

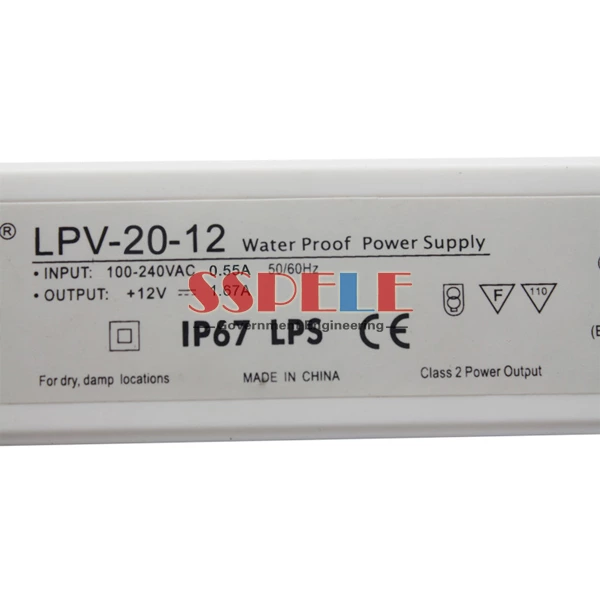

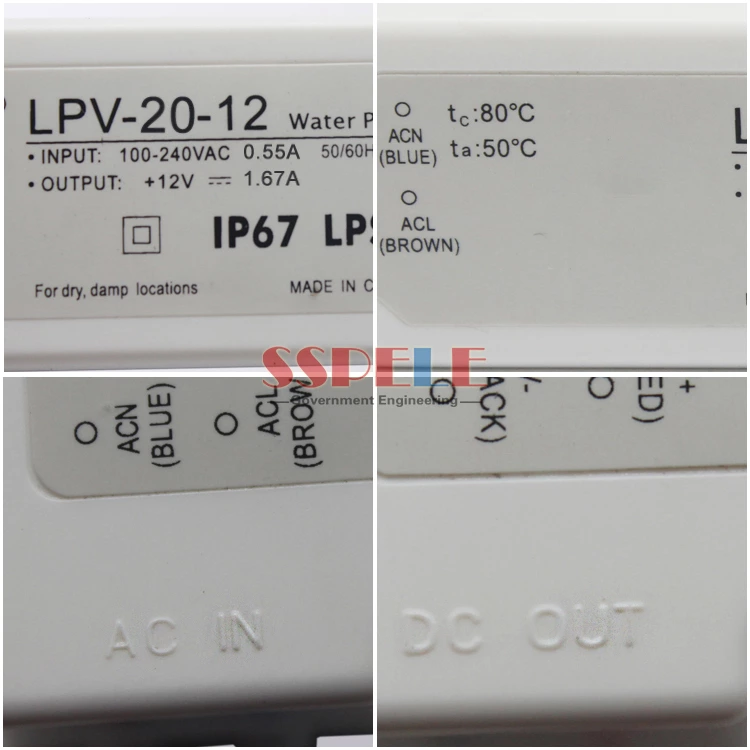

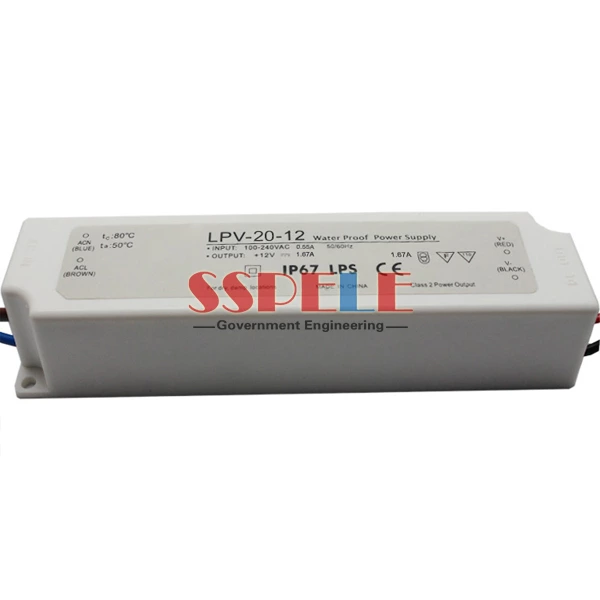

20W Waterproof Single Output Switching Power Supply LPV-20 series
Features:
- Constant voltage design
- Universal AC input/Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: short circuit/ over load/ over voltage
- Cooling by free air convection
- Small and compact size
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class IIpower unit, no FG
- Class 2 power unit
- Pass LPS
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 year warranty
| SPECIFICATIONS | ||||
| OUTPUT | ||||
| Model | LPV-20-5 | LPV-20-12 | LPV-20-15 | LPV-20-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 3A | 1.67A | 1.33A | 0.84A |
| Current Range | 0-3A | 0-1.67A | 0-1.33A | 0-0.84A |
| Rated Power | 15W | 20W | 20W | 20.2W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Tolerance | ±5% | |||
| Setup,Rise Time | 500ms,20ms/230VAC 500ms,20ms/115VAC at full load | |||
| Hold Up Time | 50ms/230VAC 16ms/115VAC | |||
| INPUT | ||||
| Voltage Range | 90~264VAC47~63Hz; 127~370VDC | |||
| AC Current | 0.55A/115V0.35A/230V | |||
| Efficiency | 77% | 81% | 83% | 83% |
| Inrush Current | Cold start 70A/230V | |||
| Leakage Current | <0.25mA/240VAC | |||
| PROTECTION | ||||
| Over Load | 110%~150% rated power | |||
| Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed | ||||
| Over Voltage | 5.75-6.75V | 13.8-16V | 17.5-21V | 28-32V |
| Protection type:Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | ||||
| Working Temp., Humidity | -30℃~+70℃; 20%~90%RH non-condensing | |||
| Storage Temp., Humidity | -40℃~+80℃; 10%~95%RH | |||
| Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Zaxes | |||
| SAFETY | ||||
| Withstand Voltage | I/P-O/P: 3KVAC | |||
| Isolation Resistance | I/P-O/P>100M Ohms/500VDC25℃/70%RH | |||
| STANDARD | ||||
| Safety Standard | Design refer to UL879, UL1310,CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91,TUV EN60950-1,IP67 Approved | |||
| EMC Standard | Design refer to EN55022(CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3 | |||
| OTHERS | ||||

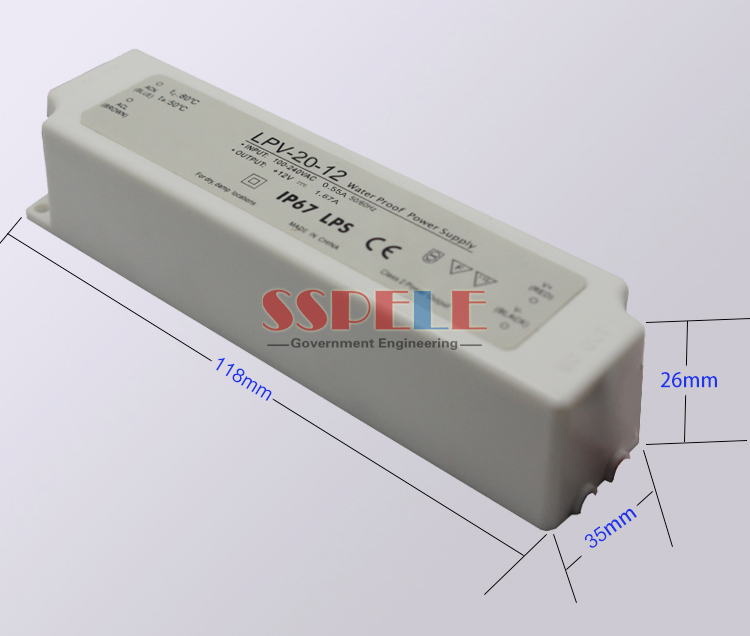

| Dimension | 118*35*26mm(L*W*H) | |||
| Weight | 0.22Kg | |||
| Packing | 60pcs/14.2Kg/0.0.62CUFT | |||
| NOTE | ||||
| 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ &47μparallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
