LDV-120
120W Single Output WaterproofSwitching Power Supply LDV-120 series
SPECIFICATION
OUTPUT
Model
LDV-120-12
LDV-
120W Single Output WaterproofSwitching Power Supply LDV-120 series
| SPECIFICATION | |||
| OUTPUT | |||
| Model | LDV-120-12 | LDV-120-24 | LDV-120-36 |
| DC Voltage | 12V | 24V | 36V |
| Rated Current | 10A | 5A | 3.3A |
| Current Range | 0-10A | 0-5A | 0-3.3A |
| Rated Power | 120W | 120W | 119W |
| Ripple & Noise | 100mVp-p | 150mVp-p | 150mVp-p |
| Voltage Tolerance | ±1% | ±1% | ±1% |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±0.5% | ±0.5% | ±0.5% |
| Setup,Rise,Hold Up Time | 80ms,36ms,20ms/230VAC | ||
| INPUT | |||
| Voltage Range | 180～264 VAC 47～63Hz；255～373VDC | ||
| AC Current | 1.5A/230VAC | ||
| Efficiency | 82% | 84% | 85% |
| Inrush Current | Cold-start current40A/230VAC | ||
| PROTECTION | |||
| Over Load | 105%~135% | ||
| Protection：Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | |||
| Working Temp., Humidity | -10℃~+60℃,20%~90%RH | ||
| Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | ||
| Temp. Coefficient | ±0.03%/℃(0-50℃) | ||
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||
| SAFETY | |||
| Withstand Voltage | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| STANDARD | |||
| Safety Standard | EN61347-1 EN61347-2-13 IP67 | ||
| EMC Standard | EN55015 EN61547 EN61000-3.4 CLASSB | ||
| OTHERS | |||

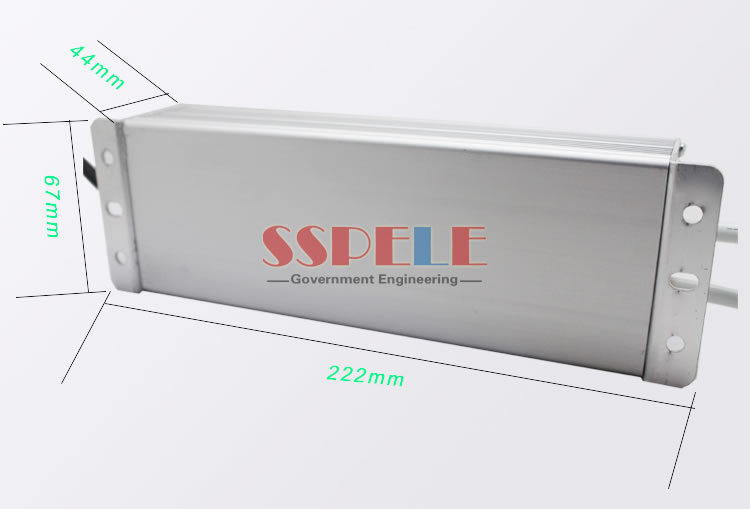

| Dimension | 222*67*44mm(L*W*H) | ||
| Weight | 1.3Kg | ||
