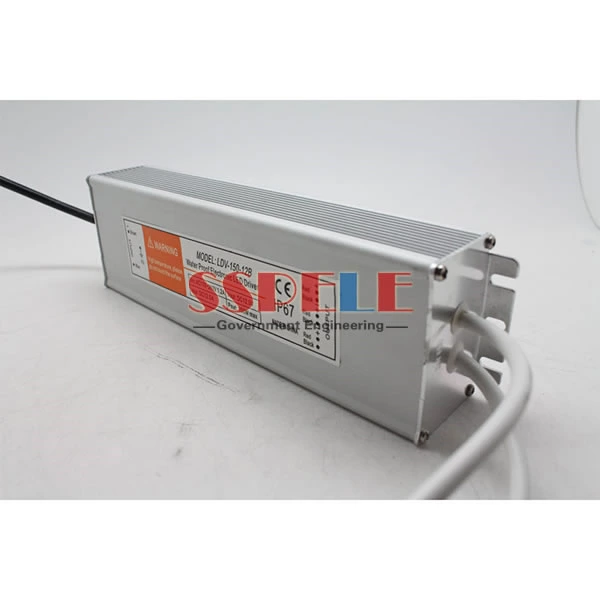

LDV-150

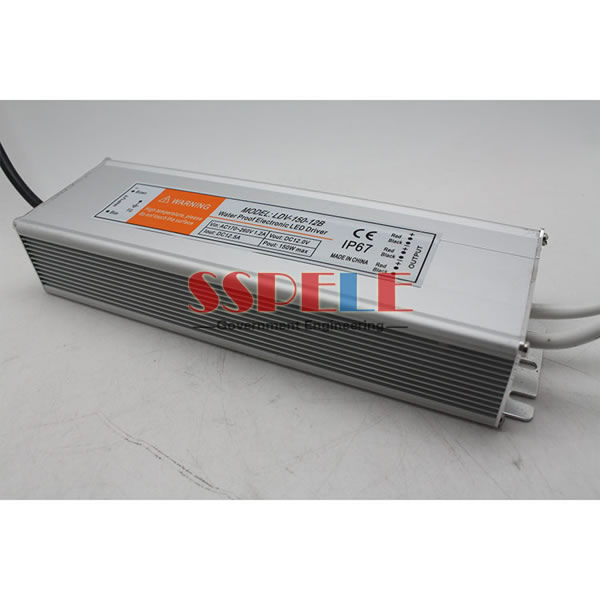

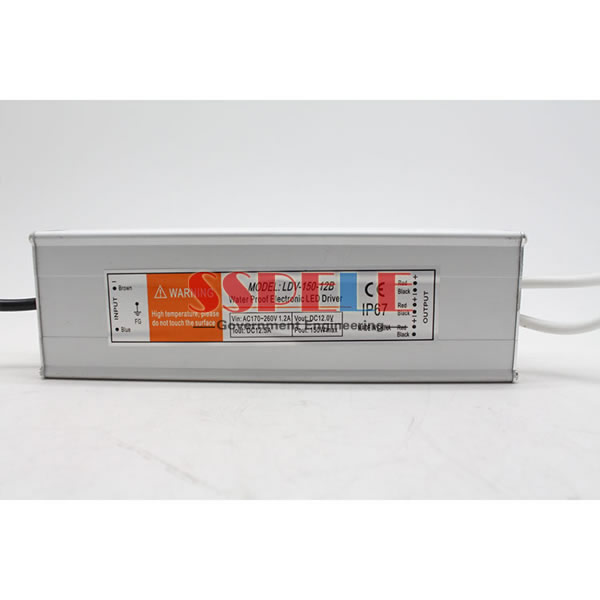

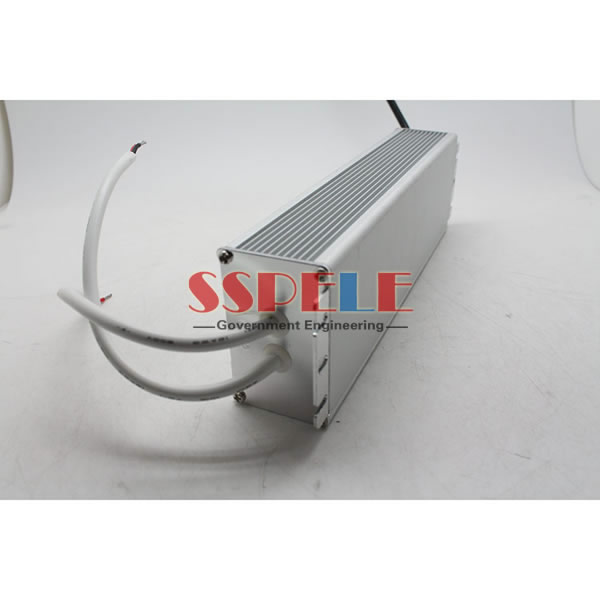

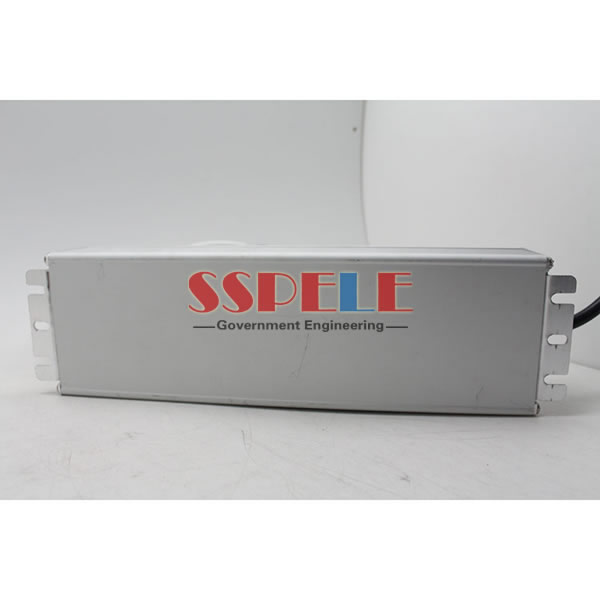

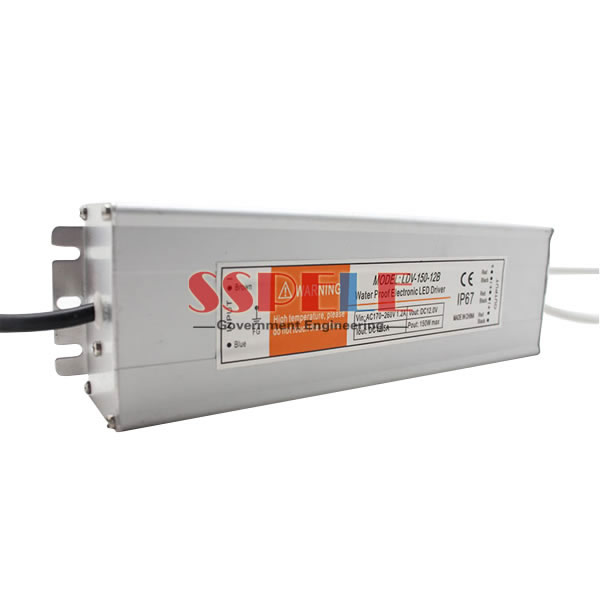

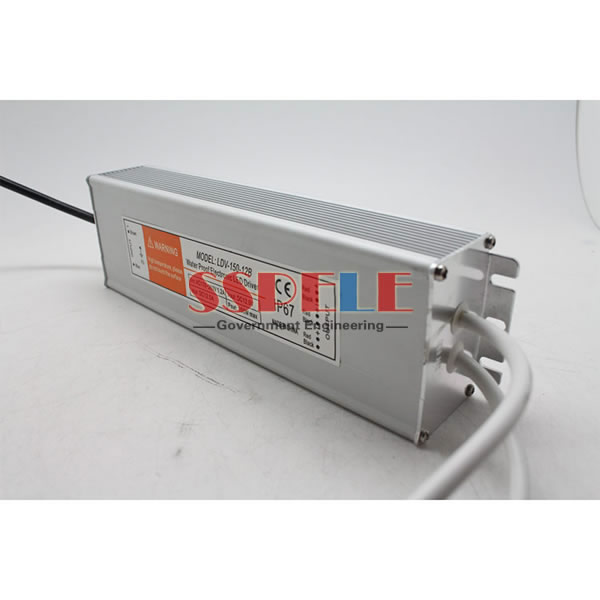

150W Single Output WaterproofSwitching Power Supply LDV-150 series
SPECIFICATION
OUTPUT
Model
LDV-150-12
LDV-
150W Single Output WaterproofSwitching Power Supply LDV-150 series
| SPECIFICATION | |||
| OUTPUT | |||
| Model | LDV-150-12 | LDV-150-24 | |
| DC Voltage | 12V | 24V | |
| Rated Current | 12.5A | 6.25A | |
| Current Range | 0-12.5A | 0-6.25A | |
| Rated Power | 150W | 150W | |
| Ripple & Noise | 120mVp-p | 120mVp-p | |
| Voltage Adj. Range | ±10% | ±10% | |
| Voltage Tolerance | ±1% | ±1% | |
| Inlet Stability | ±0.5% | ±0.5% | |
| Load Stability | ±0.5% | ±0.5% | |
| Setup,Rise,Hold Up Time | 800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | ||
| INPUT | |||
| Voltage Range | 176~264VAC | ||
| AC Current | 2.5A/115V1.5A/230V | ||
| Efficiency | 76% | 79% | |
| Inrush Current | Cold-start current 30A/115V 60A/230V | ||
| PROTECTION | |||
| Over Load | 105%~150% | ||
| plusing hiccup shutdown Reset:auto recovery | |||
| ENVIRONMENT | |||
| Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve),20%~90%RH | ||
| Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | ||
| Temp. Coefficient | ±0.03%/℃(0-50℃) | ||
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||
| SAFETY | |||
| Withstand Voltage | I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| STANDARD | |||
| Safety Standard | UL1012TUV EN60950(IEC950,UL1950)ApprovedIP67 | ||
| EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | ||
| OTHERS | |||
| Dimension | 220*69*42mm(L*W*H) | ||
| Weight | 1.2Kg | ||
